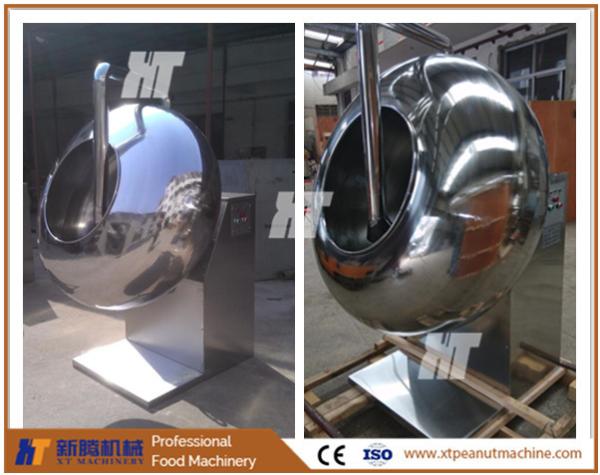

Peanut Coating Pan Sugar Coater Machine Chocolate Coating Pane
Medicine Coating and Polishing Machine
This machine is mainly used for makingpellet, coating film on
tablets. It can also be used for making ball shape products or
granules, mixing, and polishing, etc.
Such as:chocolate polishing, peanut coating, coating sugar, adding
flavor, producing pearl dumplings, and pelletizing the desiccant&
aluminium hydroxide, porcelain ball making, etc.
This machine consists of main body, worm wheel box, coating pan,
heating device, blower, blower, electrical equipment, etc. The
transmission process that the motor drive the worm wheel and worm
via triangle belt make the coating pan rotate.Then the material
erithe and revolve up and down in the coating pan, so that even
mixing, pelletizing and polishing can be completed well.
Feature:
- This machine is a special equipment which is used to coat the
chocolate,flour and sugar to form the shape.
- The coated peanuts are round and smooth:
- It also can process almond, cashew, soybeans and so on.
This equipment has been up to the export processing standard.
| Model | Dia sugarcoating dish(mm) | Capacity kg/time | Rotation Speed(r/min) | Power of Motor(kw) | Power of Fan(KW) | Power of Heat(KW) | Overall Size(mm) | Weight(KG) |
| BY1000 | 1000 | 50-70 | 32 | 1.5 | 0.12 | 3 | 1100*1000 *1560mm | 220KG |
- Cabinet Type Chocolate Spray System
I. Main configuration:
1. Double layer insulation bucket with scraper board,
2. With heat preservation chocolate pump conveying system,
3. Hot water circulation insulation system of material pipe and
trachea;
4. Specialized spray gun system with timed spray double layer
insulation chocolate,
5. Stainless steel frame with wheels.
| The cylinder volume | Mixing motor | Chocolate pump power | Power of Heat(W) |
| 30L | 370W | 750W | 3000W |
Choose imported high quality fan, and after scientific selection,
as well as the use of computer selection software, so the fan
efficiency is high, low noise, reliable performance, can ensure the
air volume and pressure head, fan bearings using lithium grease,
conventional long-term operation without adding lubricating oil
The throttling mode is controlled by external equilibrium thermal
expansion valve, which has a wide range of temperature regulation,
automatic control of refrigerant flow, stable operation of the unit
and optimal energy efficiency ratio. Compared with the capillary
throttling widely used in the market at present, it has
incomparable advantages.Using combined sheet metal structure, easy
maintenance and internal cleaning, according to the condensation
fan outlet direction, scientific punching heat dissipation hole on
the sheet metal, with the role of heat dissipation and beautiful
machine
| Model | Weight | Power(KW) | Power | Size (mm) |
| LF-02 | 71 kg | 2.06kw | 1N- 220V-50HZ | 520*470*1100 |
※FAQ:
1 Q: Can I print my Logo on the machine?
A: Yes,sure
2 Q:Can you customize the machine for me ?
A: Yes. We can customize according to customer’s requirements
3 Q: What shall we do if breakdown occurs?
A: Please informed us once the breakdown occurs. During Warranty
period , if breakdown occurs, we shall respond in time after
receiving the notification of the buyer. We shall handle failure
over the telephone/fax or arrange relevant personnel to the site
according to the buyer’s requirements
4 Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If
you are very urgent to get the price, please call us or tell us in
your E-mail so that we will regard your inquiry priority.
5 Q: Can you guarantee your quality:
A: Of course. We are the manufactuer factory, More important, we
put a high value on our reputation. Best quality is our principle
all the time . You can be assured on our production completely.
6 Q: What are your advantages compared with your competitors?
A: With rich industry experience and strict Product Quality Control
Systems, we provide:
1) Stable and reliable product at reasonable price
2) Good customer service: Fast response to any inquiry or question.
