Gas Electric Type Commercial Automatic Cashew Roaster Equipment
Plant Pistachio Peanut Roasting Machine
※Description:
1. The cashew nut roasting machine adopts heating device and
thermal circulation device, so that uniform circulating hot air is
generated in the oven. The hot air penetrates the material upwards
from the lower part of the mesh belt, and the temperature
controller can realize automatic temperature control.
2. The thickness of the material, the running speed of the conveyor
belt and the set baking temperature are reasonably set, which can
effectively ensure the ideal baking of the material.
※Technical data:
No | Item | DGNKX-7300 | DGNKX-7800 | DGNKX-11600 | DGNKX-13000 |
1 | Power | 14.6kw | 22.6kw | 22.6kw | 36kw |
2 | Capacity | 500Kg/h | 1000kg/h | 1000kg/h | 2000kg/h |
3 | | 0°C to 180°C |
4 | Heating way | LPG/GAS/ELECTRIC |
5 | Conveyor speed | adjustable |
6 | Material thickness | 6-10cm |
7 | Gas supply Condition | Gas burning pressure :3-7kpa |
gas pipeline pressure:20-50kpa |
8 | Installation Dimension | 10.3*2.4*2.9m | 10.8*4.15*3.8m | 14.6*2.4*2.9m | 16*4.15*3.8m |
The sunflower seed roaster can roasting peanut ,almond ,cashew
,sunflower seeds, etc,.
The cashew nut roasting machine uses electricity, coal, gas or fuel
oil as heat source, thermal radiation as work principle to dry or
roast material. The circulate hot wind of fan can make the material
being heated evenly and keep the material into the situation of
good quality, color and taste.
※Advantage:
1. Roast at constant temperature to ensure flavor. The nut roaster
adopts a thermostat and temperature sensor to realize intelligent
and precise temperature control.
2. The temperature control instrument is a self-learning PID
control algorithm, the longer the use time, the faster and more
stable the temperature control.
3. The specially designed dehydration steam function makes roasted
nuts more crispy.
4. Good heat preservation performance, reduce heat loss. The
thermal insulation system uses high-quality thermal insulation
cotton, and the thickness of the thermal insulation layer is thick.
5. The roasted nuts have uniform color and no damage. The
chain-plate conveying structure enables the materials to advance
smoothly and eliminates the peeling phenomenon caused by the
rolling friction between the materials.
6. The chain speed of dry fruit roaster machine is adjustable by
the frequency converter, and the transmission is stable.
7. The external maintenance door adopts a quick and easy
disassembly structure, which is convenient for maintenance and
maintenance.

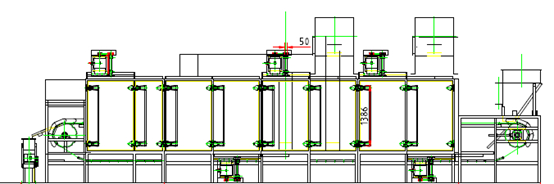

※Drawing:
※Application:
Peanuts, Sunflower Seeds, Pumpkin Seeds, Cashew Nut, Horse Beans,
Almonds, Walnuts, Hazelnut Pistachios, Pine Nuts, Pistachios etc.
※FAQ:
Q1. What is the machine material?
The contact part of the material is 304 food grade stainless steel
Q2. What is the heating method of the machine?
Electric heating, gas heating, insulation device, 5-10cm rock wool
board insulation
Q3. What materials are suitable for the machine?
Mainly used for drying and roasting hot foods such as peanuts,
broad beans, melon seeds, nuts, nuts, etc.
Q4. What is the working principle of the machine?
The use of circulating fans to exchange heat to achieve strong
airflow roasting,improve baking efficiency and improve baking
quality.
Q5. What is the heating temperature of the machine?
Normal temperature -300 ° C, the temperature is precisely adjusted,
the discharge temperature is about 60 degrees.
Q6. About the machine roasting time:
Set the temperature 160 °C-180 °C, material humidity is less than
or equal to 10%, such as roast white peanuts about 15 minutes, red
rice about 30 minutes, peanuts about 40 minutes; if the material
humidity is greater than 10% Or 15%, the roasting time will be
longer, but you can also shorten the baking time by controlling the
temperature.
